Description

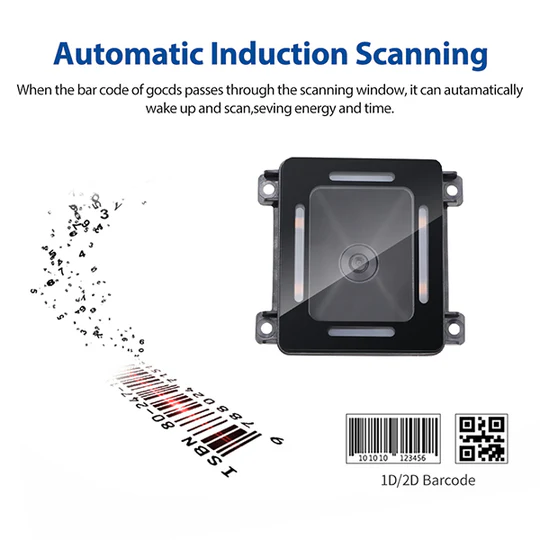

• A small 1D/2D code reader Can be embedded in any device for scanning code to identify other items, by using the intelligent image recognition algorithm. Configurable via scanning ‘configuration code’, Module matching light source, Can work in the dark.

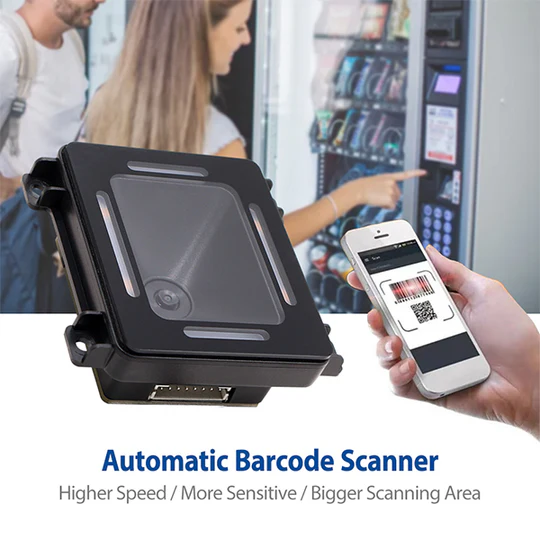

• Embedded QR code scanning module is used for access control, channel gate, locker, scan code payment, etc. And other industry equipment to achieve smart projects,The performance is stable and the decoding speed is very fast.
• 2D/QR code scanning module supports Linux, Android, windows, and other systems, Can easily capture bar codes 1D, and 2D on labels, paper, and mobile phone or computer displays, Sensitive and accurate.
• Interface TTL, USB, RS-232, Wiegand, RS-485 for option. No need to worry about the use of interface types.

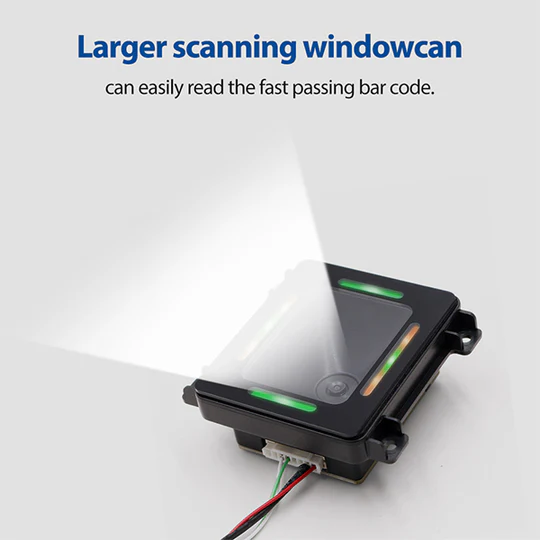

• Light Source	Red Light + IR LED
  Resolution	640*480
  IP rating	IP50
  Scan Angle	Skew70°. Pitch+70°, Roll 360°
  FOV	Diagonal 87.1°, Horizontal 74°, Vertical 65
  Print Contrast	>=20%

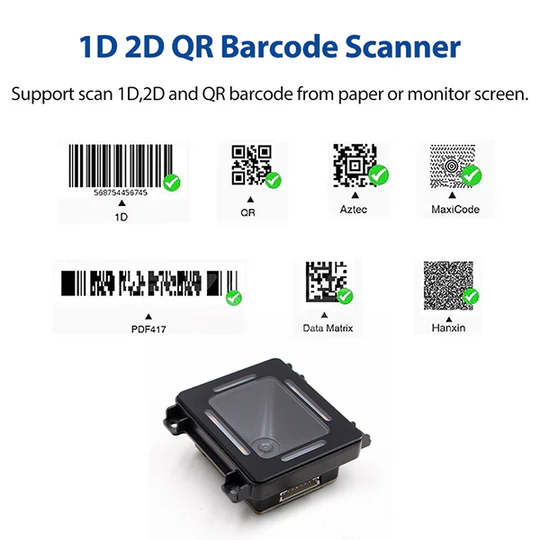

  Symbologies	1D: Codabar. Code 11. Code 128. Code 39. Code 93. EAN- 8. EAN-13. GS1 DataBar, UPC-A. UPC-E. Interleaved 2 of 5. Industrial 2 of 5. Matrix 2 of 5. Straight 2 of 5 IATA, MSI Plessey 2D: Aztec Code. HANXIN Maxicode. Codablock F. Data Matrix Code (DPM) PDF417. Micro PDF417. QR Code. Micro QR Code. DOT Code. Grid Matrix Code
  Scan Resolution	>5.0mil
  Decode capability	All 2D & 1D Barcodes
  Prompt mode	Buzzer, indicator light
  Reading Range Code39 (5mil) EAN-13 (13mil) QR (15mil)	20mm~60mm Barcode Size : 25mm*10mm 100mm~100mm, Barcode Size : 31mm*17mm 5mm~90mm, Barcode Size : 8mm*8mm
  NFC Range	0-40mm
  Interfaces	USB, RS232 RS485, TTL, Wiegand
  Dimensions	61(W)x64.8(D)<26(H): mm
  ESD	EN61000-4-2. + 15KV Air Discharge, 88VV Contact Discharge
